14 x 16 in Floor Return Air Grille Heavy Gauge Brown Steel
BREEZE33 BZ33FRAG1416-G2-BR 14X16 FLOOR RETURN AIR GRILLE HEAVY GAUGE BROWN STEEL 5/BX
Floor Grilles
}
14 x 16 in Floor Return Air Grille Heavy Gauge Brown Steel
3513664
MFG #: BZ33FRAG1416-G2-BR
Product ID:3513664
Famous Supply
- Effective Area: 179 sq. in
- Grate Type: Rectangular
- Overall Depth: 1-7/16 in
- Overall Length: 17-3/4 in
- Overall Width: 15-3/4 in
- Series: FRAG-G2
- Type: Floor Return
- Size: 14 x 16 in
- Material: Steel
- Finish: Brown

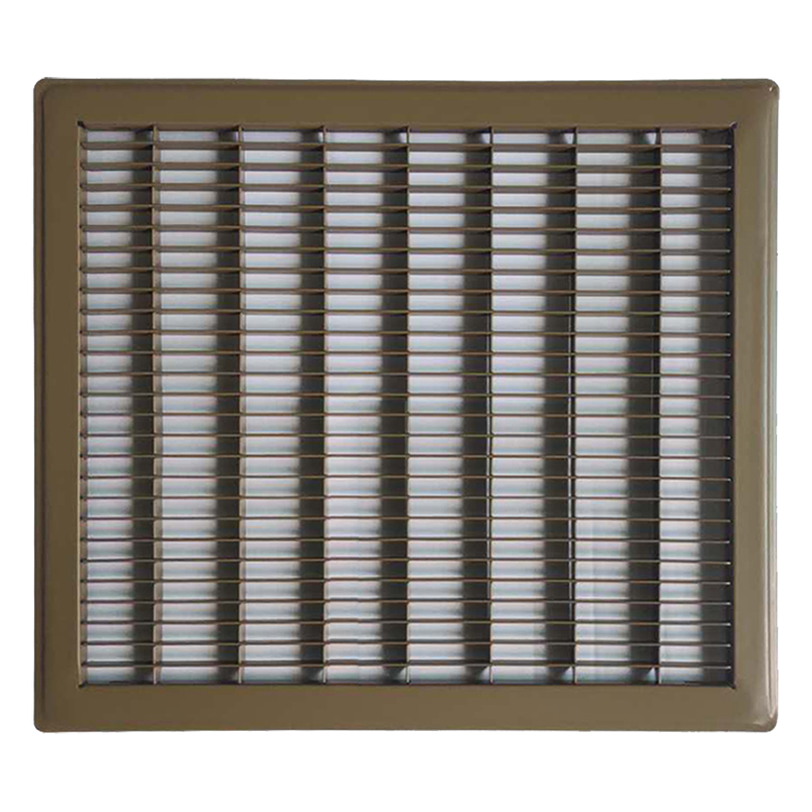

The Breeze33® BZ33FRAG1416-G2-BR is a 14 x 16 in floor return air grille designed to fit a 14 x 16 in duct opening in residential and commercial HVAC systems. Its heavy-gauge steel body features a deeper 1-7/16 in mounting frame, with overall exterior dimensions of 15-3/4 x 17-3/4 in for full coverage over larger return openings. The grille provides 179 sq in of effective free area, approximately 80% of the nominal opening, for efficient return airflow. Service technicians and installers specify it for large-footprint returns where structural rigidity and airflow capacity both matter.
- Features
- Warranty
- Application
| Fits a 14 x 16 in duct opening |
| Overall frame measures 15-3/4 x 17-3/4 in |
| Deeper 1-7/16 in mounting depth |
| 179 sq in of effective free area, approximately 80% of the nominal opening |
| Heavy-gauge steel construction with individually assembled bars |
| Rectangular grate pattern |
| Brown finish for residential floor installations |
| Suitable for residential and commercial return air applications |
| Limited lifetime warranty |
| Limited Lifetime |
| HVAC Floor Return Air |
