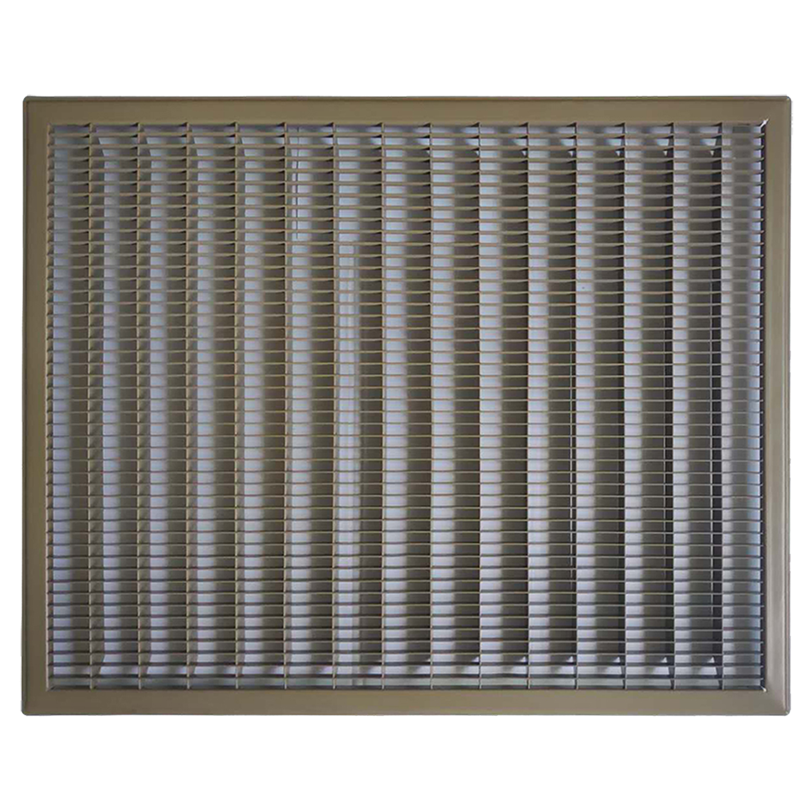

24 x 30 in Floor Return Air Grille Heavy Gauge Brown Steel
BREEZE33 BZ33FRAG2430-G2-BR 24X30 FLOOR RETURN AIR GRILLE HEAVY GAUGE BROWN STEEL 2/BX
Floor Grilles
}
24 x 30 in Floor Return Air Grille Heavy Gauge Brown Steel
3513665
MFG #: BZ33FRAG2430-G2-BR
Product ID:3513665
Famous Supply
- Effective Area: 592 sq. in
- Grate Type: Rectangular
- Overall Depth: 1-7/16 in
- Overall Length: 31-3/4 in
- Overall Width: 25-3/4 in
- Series: FRAG-G2
- Type: Floor Return
- Size: 24 x 30 in
- Material: Steel
- Finish: Brown
The Breeze33® BZ33FRAG2430-G2-BR is a 24 x 30 in floor return air grille designed to fit a 24 x 30 in duct opening in residential and commercial HVAC systems. Its heavy-gauge steel body features a deeper 1-7/16 in mounting frame, with overall exterior dimensions of 25-3/4 x 31-3/4 in for full coverage over larger return openings. It delivers 592 sq in of effective free area, about 82% of the nominal opening, supporting steady return airflow. HVAC contractors install it in high-volume return openings that require both airflow capacity and durable structural support.
- Features
- Warranty
- Application
| Fits a 24 x 30 in duct opening |
| Overall frame measures 25-3/4 x 31-3/4 in |
| Deeper 1-7/16 in mounting depth |
| 592 sq in of effective free area, approximately 82% of the nominal opening |
| Heavy-gauge steel construction with individually assembled bars |
| Rectangular grate pattern |
| Brown finish for residential floor installations |
| Suitable for residential and commercial return air applications |
| Limited lifetime warranty |
| Limited Lifetime |
| HVAC Floor Return Air |
