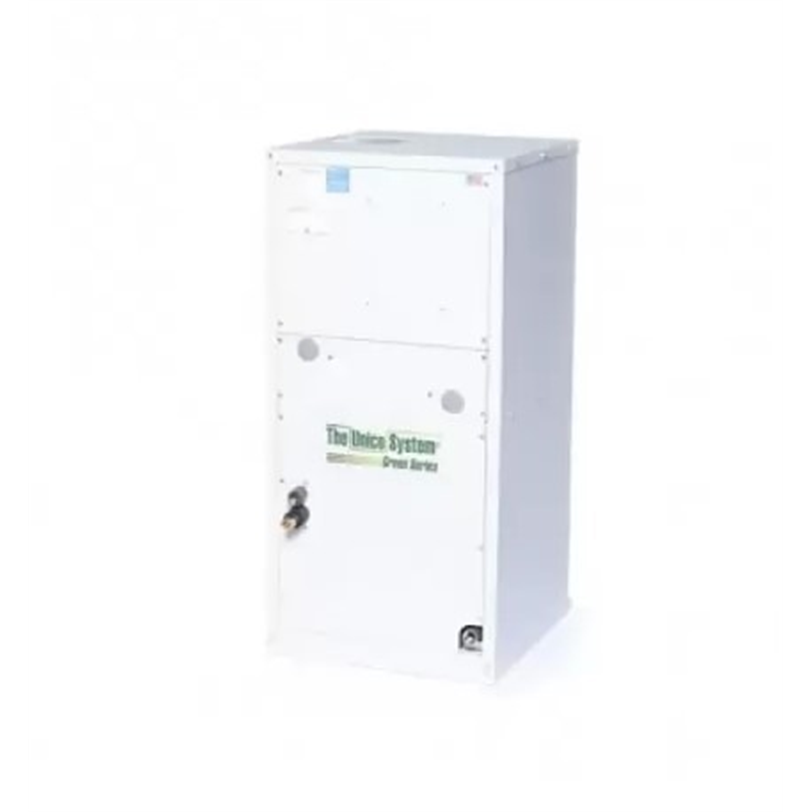

1.5-2.5 Ton Vertical Air Handler, SCB Variable Speed, R454B/R32, 120/208/230v, 3 Row Coil (AC/HP), No HWC, A2L Compliant
UNICO V2430B-1EC2BX01 R454B OR R32 VERTICAL AIR HANDLER SCB VARIABLE SPEED 120/208/230V 3 ROW COIL (AC/HP) NO HWC A2L COMPLIANT
Residential Small Duct High Velocity Air Handlers
}
1.5-2.5 Ton Vertical Air Handler, SCB Variable Speed, R454B/R32, 120/208/230v, 3 Row Coil (AC/HP), No HWC, A2L Compliant
3615750
MFG #: V2430B-1EC2BX01
Product ID:3615750
Famous Supply
- Dimensions: 20 x 20 x 42 in
- Fuse Size: 15 a
- Liquid Line Size: 3/8 in
- Motor Type: SCB Variable
- Refrigerant Type: R-454B/R32
- Series: V-B-1EC2BX1
- Suction Line Size: 5/8 in
- Type: Vertical Air Handler
- Nominal Capacity: 2.5 ton
- Flow Rate: 200-740 cfm
This is our V-Series one piece fan coil unit for vertical up flow applications in a closet or basement. This model is our 2 to 2.5 ton model with 230 volt ECM blower and cooling DX coil which includes a R-32/R-454B and a hot water coil. It can be connected to a 2 ton or 2.5 ton condensing unit from a third party.
- Features
| Easy service EC Motor (Variable Speed) |
| Removable access panels for ease of service |
| ASHRAE 62.2-2010 ventilation mode |
| Use as cooling only or heat pump |
| Optional hot water coil for heating |
| Heavy-duty closed cell insulation (no exposed fiberglass insulation) |
| R-32/R-454B |
| Condensate trap |
| S.M.A.R.T. control board |
| Ships Loose |
