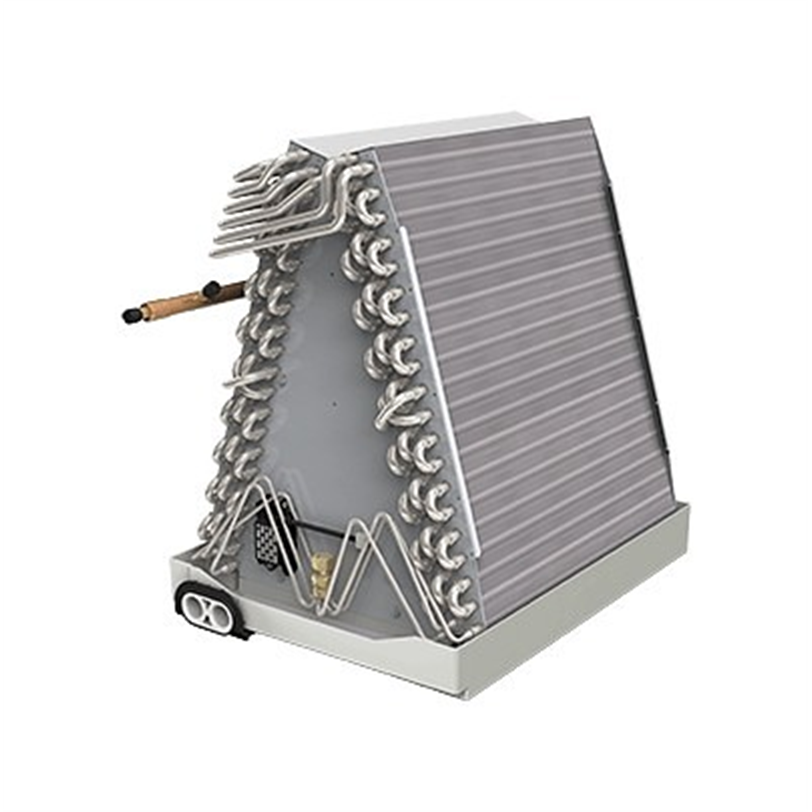

2.5 Ton Uncased Evaporator A Coil, 17-1/2 in W, Flex (no metering device) R-454B, Upflow/Downflow
LUXAIRE CTU30B5XCS1 UNCASED EVAPORATIVE A-COIL 17.5W 2R20H FLEX R-454B UPFLOW/DOWNFLOW
Evaporator Coils
}
2.5 Ton Uncased Evaporator A Coil, 17-1/2 in W, Flex (no metering device) R-454B, Upflow/Downflow
3612210
MFG #: CTU30B5XCS1
Product ID:3612210
Famous Supply
- Liquid Line Size: 3/8 in
- Metering Device: None
- Series: CTU-5X-S1
- Suction Line Size: 3/4 in
- Nominal Capacity: 2.5 ton
- Enclosure Type: Uncased
- Refrigerant Type: R-454B Flex
- Depth: 21 in
- Width: 16 in
- Height: 21-1/4 in
CTU series uncased coils are designed for upflow or downflow applications installed on the leaving air end of gas furnaces. These coils can require field modification of the ductwork.
- Features
- Warranty
| These long-life MaxAlloy aluminum coils are built to deliver lasting performance, efficiency, and reliability. |
| The drain pan is corrosion and UV resistant with a positive slope for proper drainage. The low water retention design maximizes indoor air quality and consumer comfort. |
| TXV kits are available for flex coil applications with R-454B refrigerant. All TXV kits are non-braze, bolt-on connections including the valve assembly and equalizer tube. Do not use an orifice or any other metering device in conjunction with the TXV. |
| The A2L RDS kit for Maxalloy coils detects any A2L leakage and ensures the safe operation of the equipment. Use the A2L RDS kit with CTF, CTM, CTU, and CXF coil models that do not have a factory |
| 10 Years Parts when registered. |
