5 Port Branch Box, R-454A
MITSUBISHI PAC-LMA50BC R454B 5-PORT BRANCH BOX USE W/MXZ-#D/MXZ-SM##NL SYSTEMS ONLY MODEL CODE 7H2M46
Mini Split Accessories
}
5 Port Branch Box, R-454A
3612518
MFG #: PAC-LMA50BC
Product ID:3612518
Famous Supply
- Series: PAC-LM-BC
- Type: Branch Box
- Suitable For Use With: MXZ-SM Series Outdoor Condensers

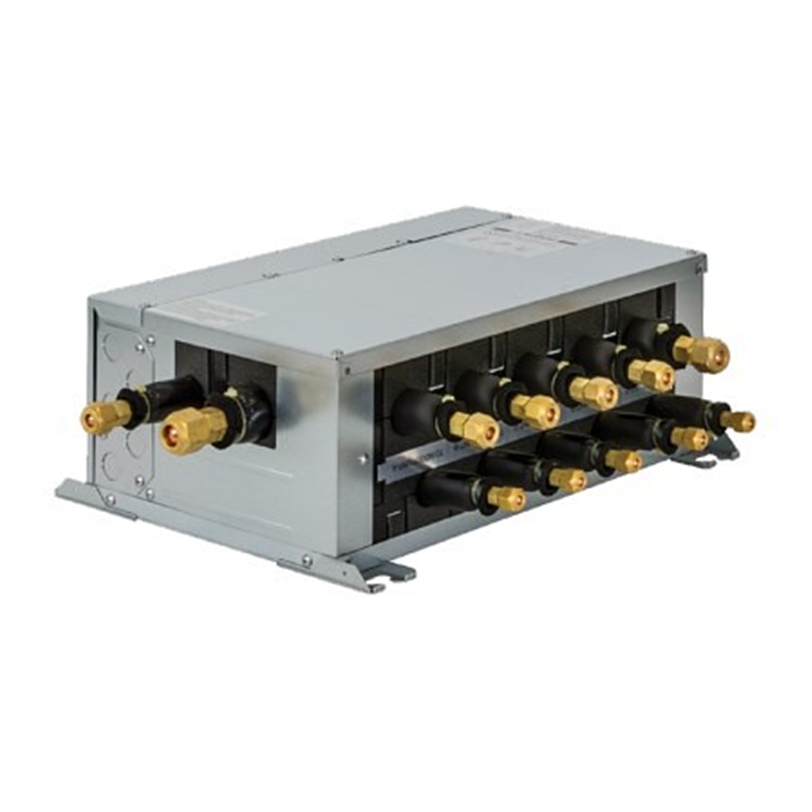

The PAC-LMA50BC is a five-port branch box designed for multi-zone mini split systems using Mitsubishi’s MXZ-SM series outdoor condensers. It efficiently manages the distribution of both refrigerant and power from the outdoor unit to connected indoor units. Equipped with electronic linear expansion valves (LEVs), this branch box ensures precise refrigerant flow and accurate coil temperature control for optimal indoor unit performance.
- Features
| (5) 1/4, (4) 3/8 & (1) 1/2 in Flared Connections |
| 3/8 in Suspension Bolt |
| When connecting the outdoor unit to the branch box directly, the reduction in pipe size must be made at the branch box using the port adaptor: ADP5834 (5/8"F x 3/4"M). |
| When connecting the outdoor unit to the distribution pipe (MSDD-50AR2-E, for using 2 branch boxes), the reduction in pipe size must be made at the distribution pipe using the port adaptor: ADP5834 (5/8"F x 3/4"M). |
