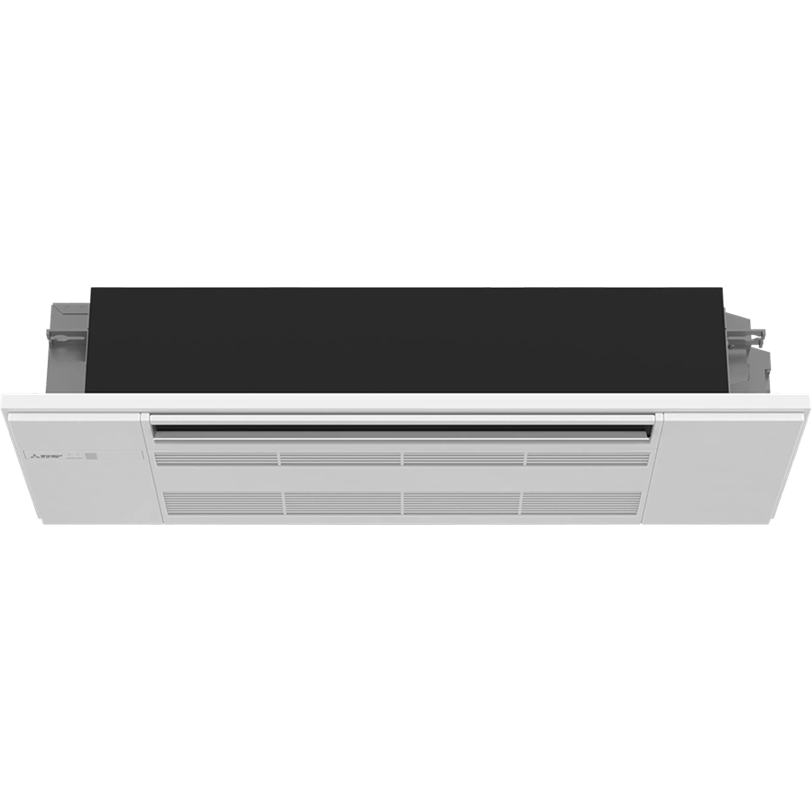

9,000 BTU Ceiling Mounted Indoor Unit
MITSUBISHI MLZ-KX09NL R454B 9K BTU 1-WAY CEILING CASSETTE INDOOR UNIT W/REMOTE CONTROLLER USE W/HYPER & HEAT PUMP SUZ-AA AND MXZ-#D/MXZ-SM##NL SYSTEMS ONLY 1/4 X 3/8 LINESET-NOT INCLUDED MODEL CODE 65PQ6E MUST ...
Mini Split Heat Pump Indoor Units
}
9,000 BTU Ceiling Mounted Indoor Unit
3612446
MFG #: MLZ-KX09NL
Product ID:3612446
Famous Supply
- Color: Munsell
- Dimensions: 43-3/8 x 14-3/16 x 7-5/16 in
- Discharge Line Size: 1/4 in
- Mounting Type: Ceiling Mounted
- Nominal Capacity: 9000 btu/h
- Series: MLZ
- Suction Line Size: 3/8 in
- Cooling Capacity: 9000 btu/h
- Power Source: 208 / 230, 1, 60
- Refrigerant Type: R454B
Designed to fit between ceiling joists, the EZ FIT® Ceiling-recessed Indoor Unit offers a clean flush-mount appearance without detracting from your décor, making this ductless recessed unit is one of our most popular options. High/low ceiling airflow settings, automatic vane control and multi-stage filtration personalizes room comfort.
- ME_SUBMITTAL_MLZ-KX09NL_SUZ-AA09NL.pdf(Submittal)
- ME_SUBMITTAL_MLZ-KX09NL_SUZ-AA09NLHZ.pdf(Submittal)
- MLZ-KX..NL_Compatibility Chart (2).pdf(Compatibility Guide)
- MLZ-KX..NL_Compatibility Matrix (1).pdf(Compatibility Guide)
- MLZ-KX09NL_12_18_Installation.pdf(Instruction Installation Manual)
- MLZ-KX09NL_12_18_Operation.pdf(Owners User Manual)
- MLZ-KX09NL_12_18_Service.pdf(Service Manual)
- OBB957MLZ-KX09NL_12_18_Parts.pdf(Parts)
- Features
| Adjustable fan speeds and vane directions |
| Auto Vane Control: Outlet vanes can be moved left and right, and up and down using the remote controller. This improved air flow control feature solves the problem of drafts |
| Built-in condensate lift mechanism (19.6”): Reduces the need for an additional pump to remove condensate water |
| Econo Cool: Econo Cool temporarily and automatically adjusts the airflow based on heat exchanger temperature. The set temperature is increased slightly, which saves energy, while maintaining comfort. |
| Fits between 16” joists spacing |
| Multiple control options including: Hand-held Remote Controller (provided with unit), comfort app, third-party interfaces and both wired and wireless controllers |
| Serviceable from the bottom (electrical and flare connections) |
| Stylish, square design panel |
| Washable antibacterial and deodorizing filter |
| Weekly Timer Function: Easily set desired temperatures and operation ON/OFF times to match lifestyle patterns. Reduce wasted energy consumption by using the timer to prevent forgetting to turn off the unit and eliminate temperature setting adjustments. |
| Wi-Fi enabled units pair with the Comfort app for complete control over temperature, fan speeds, modes, schedules, and more. |
