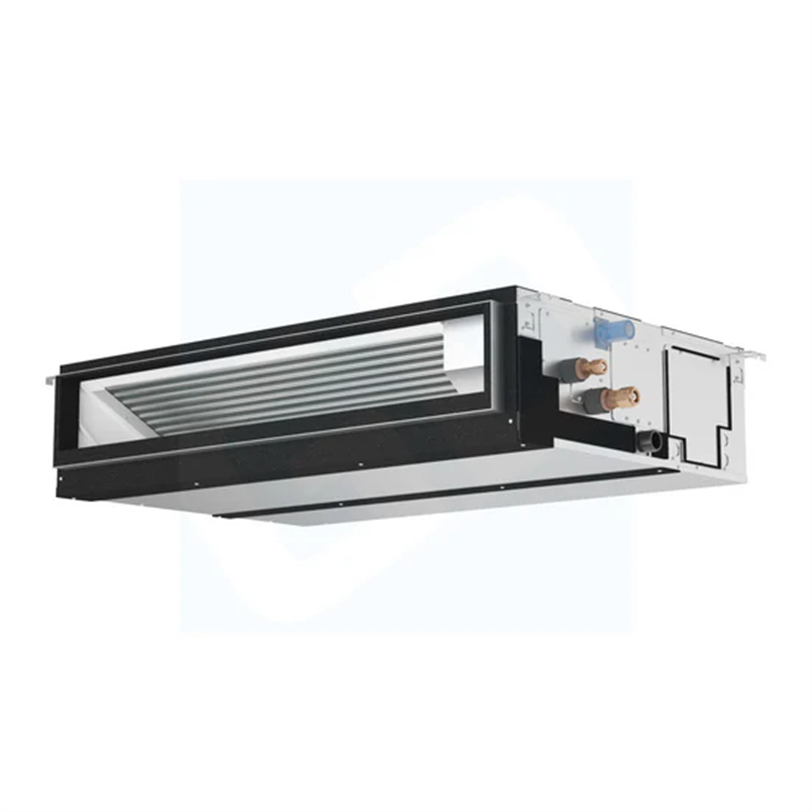

18,000 BTU Horizontal Ducted Indoor Unit
MITSUBISHI PEAD-AA18NL R454B 18K BTU HORIZONTAL DUCTED INDOOR UNIT REMOTE CONTROL NOT INCLUDED USE W/SUZ-AA18NL SUZ-AA18NLHZ PUY-AK18NL AND PUZ-AK18NL SYSTEMS ONLY 1/4 X 1/2 LINESET NOT INCLUDED MODEL CODE 30P318
Mini Split Heat Pump Indoor Units
}
18,000 BTU Horizontal Ducted Indoor Unit
3612526
MFG #: PEAD-AA18NL
Product ID:3612526
Famous Supply
- Dimensions: 35-7/16 x 28-7/8 x 9-7/8 in
- Discharge Line Size: 1/2 in
- Mounting Type: Horizontal
- Series: PEAD
- Suction Line Size: 1/4 in
- Nominal Capacity: 18000 btu/h
- Type: Horizontal-Ducted
- Power Source: 208 / 230, 1, 60
- Refrigerant Type: R454B
Mid Static intelli-AIR ducted solutions offer low capacities perfect for all size homes, up to larger capacities for light commercial applications such as offices, retail, daycares, and restaurants. Mid Static ducted solutions heat and cool large spaces or multiple rooms running from a long duct run. Easily installed in an attic, ceiling or beneath the floor, the fully-concealed whisper-quiet Mid Static intelli-AIR ducted solutions enhance air quality and offer unmatched energy-efficiencies as a variable-capacity heat pump, ensuring minimal energy is used to keep the desired indoor temperature.
- M- and P-Series Low GWP Compatibility Matrix.pdf(Compatibility Guide)
- ME_SUBMITTAL_PEAD-AA18NL_PUY-AK18NL.pdf(Submittal)
- ME_SUBMITTAL_PEAD-AA18NL_PUZ-AK18NL.pdf(Submittal)
- ME_SUBMITTAL_PEAD-AA18NL_SUZ-AA18NL.pdf(Submittal)
- ME_SUBMITTAL_PEAD-AA18NL_SUZ-AA18NLHZ.pdf(Submittal)
- Mitsubishi_PEAD-AA..NL_Installation.pdf(Instruction Installation Manual)
- Mitsubishi_PEAD-AA..NL_Operation.pdf(Owners User Manual)
- Mitsubishi_PEAD-AA..NL_Parts.pdf(Parts)
- Mitsubishi_PEAD-AA..NL_Service.pdf(Owners User Manual)
- Mitsubishi_PEAD-AA..NL_Technical.pdf(Specification Sheet)
- Features
- Warranty
| Auto fan speed mode |
| Built-in condensate lift mechanism (up to 27-9/16”) |
| Multiple control options including: comfort app, third-party interfaces and both wired and wireless controllers |
| Optional FB Series filter boxes for easy access and service |
| Unobtrusive ceiling-concealed design for short-run ductwork |
| Wide ranging external static pressure (0.14-0.60 in. WG) |
| Limited |
