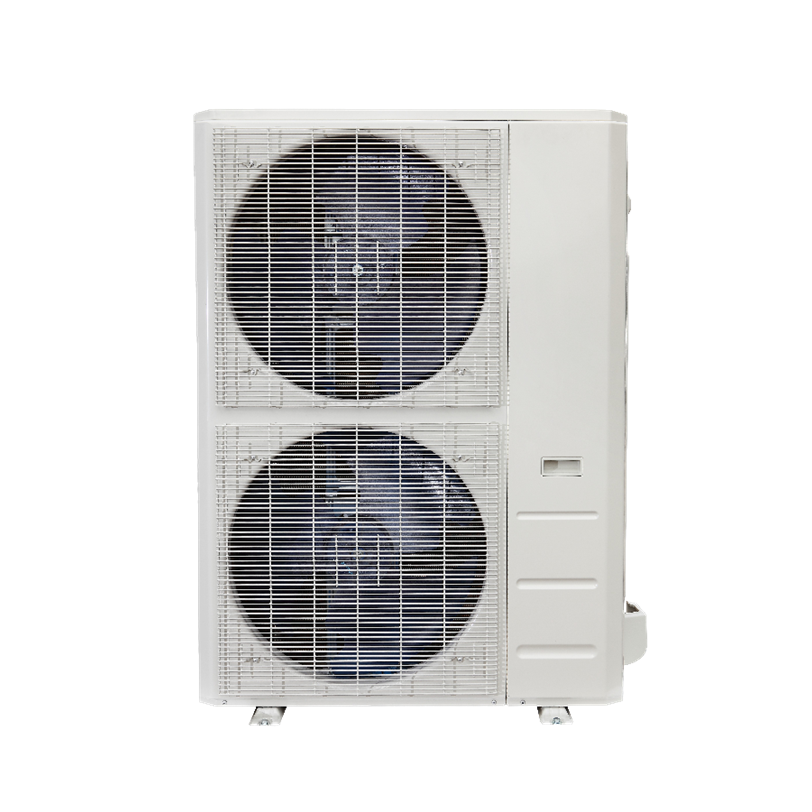

Inverter 60,000 BTU Hyper Pro Outdoor Unit G3 Refrigerant R454B
BREEZE33 BZ33-INV60OUT2-454-G3-J INVERTER 60K HYPERPRO J SERIES OUTDOOR UNIT
Mini Split Heat Pump Outdoor Units
}
Inverter 60,000 BTU Hyper Pro Outdoor Unit G3 Refrigerant R454B
3612255
MFG #: BZ33-INV60OUT2-454-G3-J
Product ID:3612255
Famous Supply
- Compressor Type: Dual Rotary
- COP Rating: 3.1
- Dimensions: 37-1/2 x 16-5/16 x 52-1/2 in
- Discharge Line Size: 3/8 in
- Flow Rate: 2648.62 cfm
- Fuse Size: 40 a
- Maximum Piping Length: 246 ft
- Nominal Capacity: 60000 btu
- Series: J Series
- Suction Line Size: 3/4 in
- Temperature Rating: -22 to 122 (cooling operating range); -22 to 75 (heating operating range) °f
- Type: Inverter
- Heating Capacity: 56000 btu/h
- Cooling Capacity: 54000 btu
- Power Source: 115/208/230V,60Hz,1Ph
- Refrigerant Type: R454B
The Breeze33® J Series Inverter Outdoor Unit, Model BZ33-INV60OUT2-454-G3-J, is a ductless heat pump condenser built for a single-zone ductless mini split system. It delivers 54,000 BTU of cooling and 56,000 BTU/H of heating, rated at 16.0 SEER2, 10.0 EER2, and 9.0 HSPF2. Built with a dual rotary compressor and low-GWP R454B refrigerant and runs on 115/208/230V,60Hz,1Ph, it is designed for reliable outdoor installation in residential and light commercial HVAC systems. It is backed by a 5-year parts, 7-year compressor warranty and certified to ETL, AHRI, NEEP standards, giving contractors a dependable option for new installs or system replacements.
- Breeze33_Breeze33-BZ33-INV60OUT2-454-G3-J-BZ33-INVAHU60-454-G3-J_SpecSheet.pdf(Specification Sheet)
- Breeze33_Breeze33-BZ33-MSC48C-454-G3-J-BZ33-INV60OUT2-454-G3-J_SpecSheet.pdf(Specification Sheet)
- Breeze33_Breeze33-BZ33-MSC60D-454-G3-J-BZ33-INV60OUT2-454-G3-J_SpecSheet.pdf(Specification Sheet)
- Breeze33_EquipmentGuide_SBLQ_2025.pdf(Catalog)
- Breeze33_G3-Controller_Compatibility-Guide.pdf(Compatibility Guide)
- Breeze33_G3-Mini-Split_Compatibility-Guide.pdf(Compatibility Guide)
- Mini-Split Warranty_7-10 year_WorkingFile_2024.pdf(Warranty Information)
- Features
- Warranty
- Standards & Approvals
- Application
| Multi-position installation: horizontal(left or right), vertical( up or down) |
| Aluminum Coil |
| Constantly Air Flow system up to 0.80 In.W.G |
| 1 in R4.2 fiberglass free insulation reduces condensation and boosts efficiency(optional) |
| Optional Auxiliary heat kit up to 25kW |
| Easy Maintenance |
| Multiple control options available |
| Adaptive Control System |
| High efficiency up to 19 SEER2, 12.5 EER2, 10.3 HSPF2 |
| 100% heat output at -4F* |
| 5 years parts/7 years compressor |
| ETL |
| AHRI |
| NEEP |
| Outdoor |
