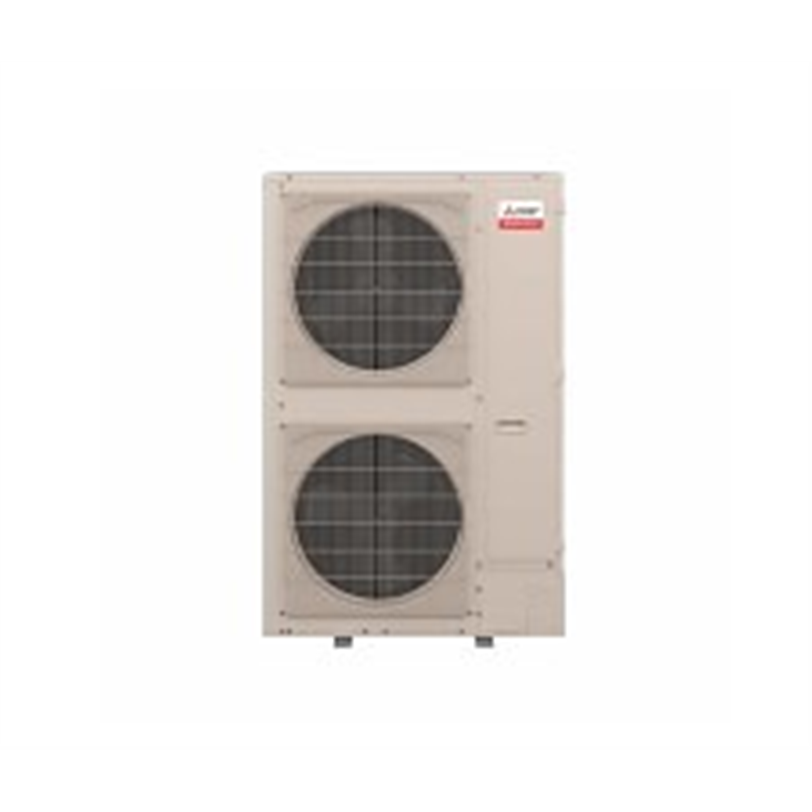

48K BTU/H Smart Multi Series Outdoor Heat Pump Unit, 8 Zone, R-454B
MITSUBISHI MXZ-SM48NL R454B HEAT PUMP 48K BTU 8 ZONE OUTDOOR UNIT ONLY USE WITH 2-8 INDOOR UNITS BRANCH BOX NOT INCLUDED LINESETS NOT INCLUDED 208/230/1 MODEL CODE 77RP34
Mini Split Heat Pump Outdoor Units
}
48K BTU/H Smart Multi Series Outdoor Heat Pump Unit, 8 Zone, R-454B
3612505
MFG #: MXZ-SM48NL
Product ID:3612505
Famous Supply
- COP Rating: 1.96-4
- Dimensions: 41-11/32 x 13 x 52-11/36 in
- Discharge Line Size: 3/8 in
- Fuse Size: 35/40 a
- Maximum Piping Length: 492/787 ft
- Series: MXZ-SM-NL
- Suction Line Size: 5/8 in
- Type: 8 Zone
- Power Source: 208-230/60/1
- Refrigerant Type: R-454B
The Mitsubishi MXZ-SM48NL is a 48,000 BTU Smart Multi outdoor heat pump, offering outstanding efficiency for heating and cooling needs. It can support up to eight zones with M&P-Series indoor units, and up to 12 zones with City Multi indoor units. Designed for versatility, this unit is compatible with a broad range of indoor unit types. As part of Mitsubishi’s Smart Multi Series, it’s ideal for both residential and commercial applications. The system uses the new R-454B refrigerant and directly replaces the MXZ-SM48NAM* model.
- Features
- Warranty
| Compatible with M- and P-Series and CITY MULTI® indoor units (branch box required for connection with M- and P-Series) |
| Compressor overcurrent detection |
| Compressor thermal protection |
| Fan motor overheating/voltage protection |
| High pressure protection |
| INVERTER-driven compressor: Compressor generates the precise capacity needed to maintain a temperature set point. |
| Quiet operation: Outdoor units are as quiet as a typical conversation, and most indoor units are whisper quiet. |
| Seacoast protection: Seacoast protection on heat exchanger and base panel (rated for 2,000 hrs. in accordance with ASTM B117 testing) |
| Thermal Differential 1°F |
| Energy Star Certified* |
| 10 Years With Registration |
