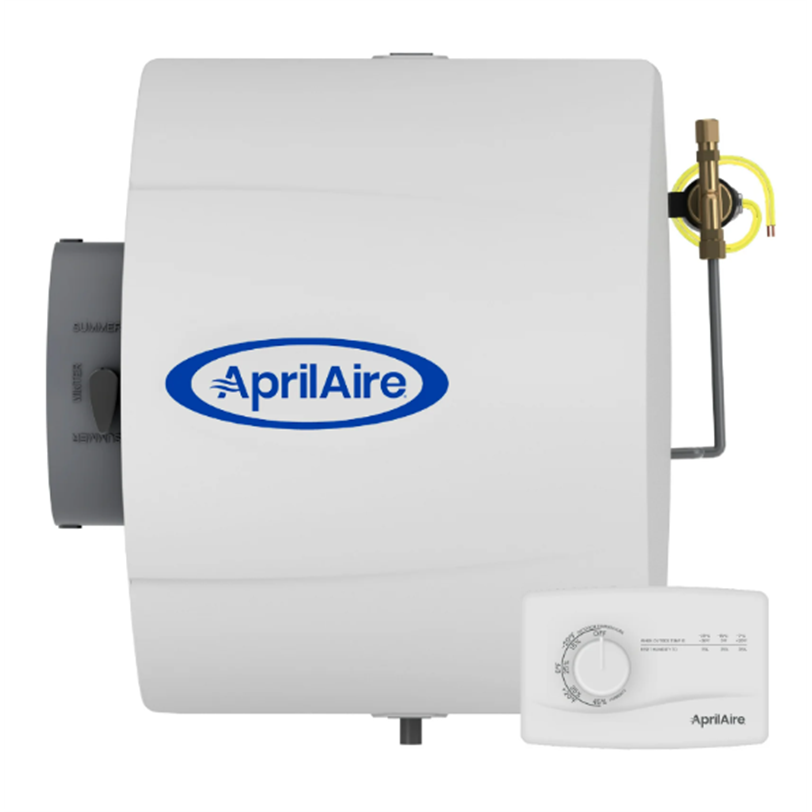

Aprilaire 500M Bypass Humidifier, 0.5 A, 24 VAC, 60 Hz, 0.5 gph Evaporative
APRILAIRE 500M APRILAIRE SMALL BYPASS HUMIDIFIER W/ MANUAL CONTROL (18/PL)
Whole House Humidifiers
}
Aprilaire 500M Bypass Humidifier, 0.5 A, 24 VAC, 60 Hz, 0.5 gph Evaporative
3072287
Product ID:3072287
Famous Supply
- Control Type: Manual
- Dimensions: 13 in H x 15-5/8 in W x 10-1/4 in D
- Plenum Opening: 9-1/2 in H x 9-1/2 in W
- Type: Bypass
- Water Feed Rate: 3 gph
- Electrical Ratings: 0.5 A, 24 VAC, 60 Hz
- Evaporative Rate: 0.5 gph
The Aprilaire Model 500 Humidifier is a whole-home solution that helps you achieve total comfort through humidity control. The Model 500 is installed in your central heating and cooling system ductwork by a local HVAC professional.
- Features
- Standards & Approvals
- Includes
- Application
| A built in bypass damper, which means less parts to install |
| Truly automatic control, but it can also be installed in manual modes |
| Delivers optimum levels of humidity control with the automatic digital humidifier control |
| Provides vital service, temperature and relative humidity indicators in manual modes as well |
| Humidifier tightly constructed homes up to 3,000 sq-ft in size |
| Performs quietly with simple annual maintenance |
| Comes equipped with a drain to flush minerals from the units |
| Incorporates easy right or left discharge change over |
| Has an evaporation capacity of 0.5 gallons per hour |
| 6 in dia round opening |
| UL 998 |
| Saddle Valves and Transformer |
| For small to mid-sized homes |
