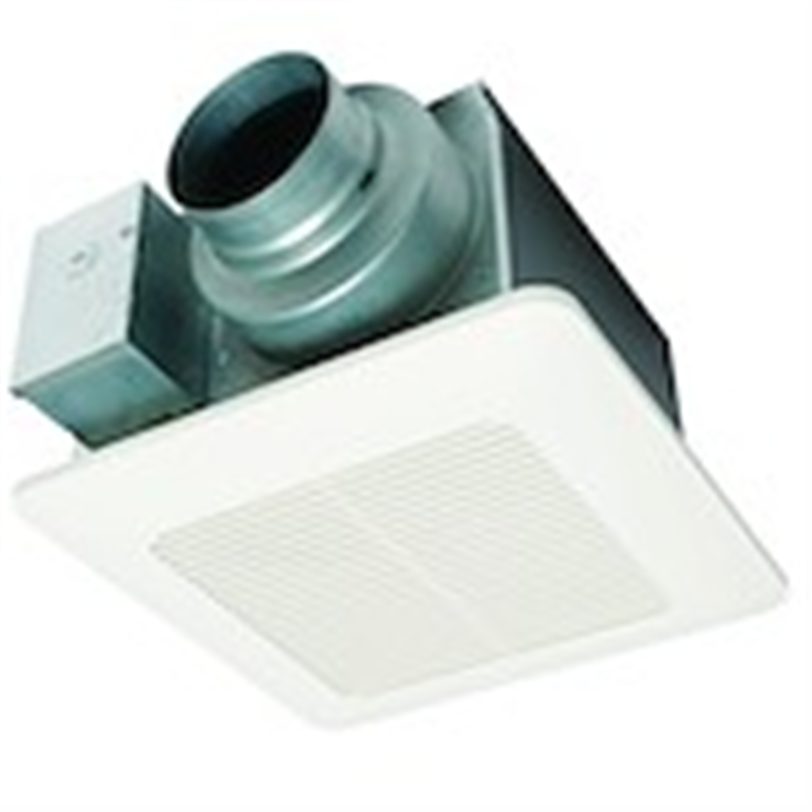

Panasonic WhisperCeiling® DC™ SmartFlow™ FV-0511VQ1 1-Phase Ventilation Fan With ECM Motor, Installation Bracket, 50/53/80/83/110/111 cfm Flow Rate, 4 in, 6 in Dia Duct, 4/5.9/7.2/10.6/10.8/16.4 W Power Rating, 120 VAC, 0.07 to 0.18 A, Import
PANASONIC FV-0511VQ1 WHISPER CEILING DC PICK-A-FLOW 50, 80, 110 CFM FAN ONLY
Exhaust Fans
}
Panasonic WhisperCeiling® DC™ SmartFlow™ FV-0511VQ1 1-Phase Ventilation Fan With ECM Motor, Installation Bracket, 50/53/80/83/110/111 cfm Flow Rate, 4 in, 6 in Dia Duct, 4/5.9/7.2/10.6/10.8/16.4 W Power Rating, 120 VAC, 0.07 to 0.18 A, Import
3429915
Product ID:3429915
Famous Supply
- Frequency Rating: 60 Hz
- Grille Length: 13 in
- Grille Width: 13 in
- Housing Height: 7-3/8 in
- Housing Length: 10-1/4 in
- Housing Material: Zinc Aluminum Magnesium
- Housing Width: 10-1/4 in
- Mounting Type: Ceiling
- Type: 1-Phase
- Flow Rate: 50/53/80/83/110/111 cfm
- Duct Diameter: 4 in, 6 in
- Voltage Rating: 120 vac
- Domestic/Import: Import
- Amperage Rating: 0.07 to 0.18 A
- Width: 14.17 in
- Height: 16.73 in
- Power Rating: 4/5.9/7.2/10.6/10.8/16.4 W
- Length: 11.85 in
WhisperCeiling® DC™ precision spot ventilation fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 cfm). Features a ECM motor with SmartFlow™ technology and a Flex-Z Fast™ installation bracket. Can be used to comply with the latest codes and standards.
- Features
- Warranty
- Standards & Approvals
- Application
| Revolutionary ECM motor with SmartFlow™ technology for optimum cfm output |
| Pick-A-Flow™ speed selector - one fan, you choose the cfm (50, 80, 110 cfm models) |
| Flex-Z Fast™ bracket provides flexible, fast and trouble-free installation, even from below the ceiling |
| Lighted models incorporate one long life, 10 W dimmable LED chip panel with <1 W LED night light for warm, energy efficient illumination |
| Elegant grille design compliments the aesthetics of any bathroom |
| Single speed |
| 3 Years |
| cULus Listed |
| HVI Compliant |
| ENERGY STAR Certified |
| Washington VIAQ Compliant |
| ASHRAE 62.2 |
| LEED Compliant |
| EarthCraft Compliant |
| PROP65: Ventilation Fan products sold by Panasonic Eco Solutions North America (PESNA) do not contain Proposition 65 listed chemicals at a level, or in a manner, that require Proposition 65 Consumer Product Exposure Warnings |
| Bathroom, Laundry Room, Sun Room, Basement, Garage and Ventilation Applications |
