IFC™ Cartridge Circulator Pump
TACO 007-F5-7IFC CAST IRON CIRCULATOR WITH INTEGRAL FLOW CHECKS
Hydronic Circulating Pumps
}
IFC™ Cartridge Circulator Pump
276209
MFG #: 007-F5-IFC
Product ID:276209
Famous Supply
- Amperage Rating: 0.71
- Bearing Type: Carbon
- Impeller Type: Plastic
- Maximum Head: 11 ft
- Maximum Pressure: 125 psi
- Motor Speed: 3250 rpm
- Power Rating: 1/25 hp
- Series: 007-IFC®
- Temperature Rating: 40 to 230 deg f
- Type: Cartridge Circulator Pump
- Flow Rate: 0 to 12.5 gpm
- Inlet Size: 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged
- Voltage Rating: 115/60/1

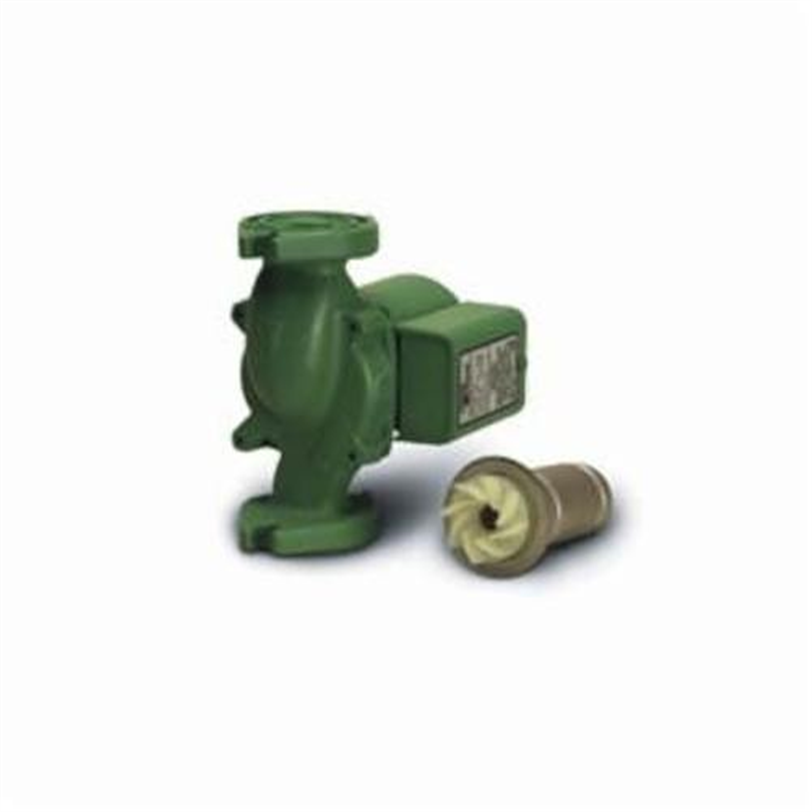

The Taco® 007 cartridge circulator is the most popular hydronic circulator sold today. With its field serviceable cartridge design, the compact 007 provides quiet, efficient operation and unmatched reliability. The self-lubricating, maintenance free design and flow characteristics make it the ideal hydronic circulator for a wide range of applications.
- Features
- Application
| Standard high capacity output compact design |
| Quiet, efficient operation |
| Direct drive-low power consumption |
| Unique replaceable cartridge design-field serviceable |
| Self lubricating |
| No mechanical seal |
| Unmatched reliability-maintenance free |
| Universal flange to flange dimensions |
| Motor specification - single phase, permanent split capacitor impedance protected |
| Cast iron casing |
| Stainless Steel cartridge and spring |
| Non metallic impeller |
| Steel stator housing |
| Ceramic shaft |
| Carbon bearing |
| EPDM O-ring and gasket |
| The 007-IFC with an integral flow check is designed to reduce installation costs when zoning with "00" circulators on hydronic or radiant heating, hydro-air fan coils or indirect water heaters |
| By locating the patented IFC™ inside the pump casing, a separate in-line flow check is eliminated, reducing installation costs |
| Acetal body and plunger |
| Flanged connection sizes 3/4, 1, 1-1/4 and 1-1/2 in |
| Hydronic Heating, Radiant Heating, Hydro-Air Fan Coils, Indirect Water Heaters, Chilled Fresh Water and Domestic Water Recirculation Systems |
