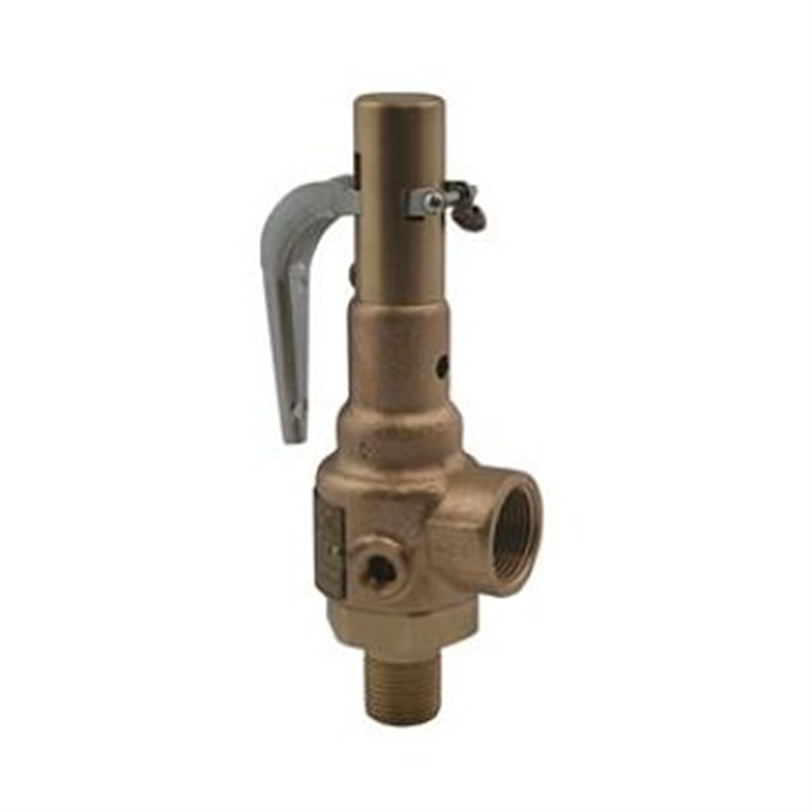

1-1/4 x 1-1/2 in ASME Sec VIII Steam Bronze Safety Relief Valve w/ Brass Trim, 165 lb, Metal Seat, MNPT x FNPT
APOLLO 19-MGFL-165 1-1/4" X 1-1/2" RELIEF VALVE W/ METAL SEAT SET @ 165# SECTION 8 STEAM SERVICE
Pressure Relief Valves
}
1-1/4 x 1-1/2 in ASME Sec VIII Steam Bronze Safety Relief Valve w/ Brass Trim, 165 lb, Metal Seat, MNPT x FNPT
3385720
MFG #: 19MGFL165
Product ID:3385720
Famous Supply
- Media: Steam
- Series: 19MGFL
- Type: Relief Valve
- Nominal Size: 1-1/4 x 1-1/2 in
- End Style: MNPT x FNPT
- Pressure Rating: 165 lbs
- Body Material: Bronze
Apollo 19-MGFL_165 1-1/4 x 1-1/2 in ASME Sec VIII Steam Bronze Safety Relief Valve w/ Brass Trim, 165 lb, Metal Seat, MNPT x FNPT
- Features
- Standards & Approvals
- Application
| ASME Section I & VIII Certified Capacities |
| 5 - 300 psig Set Pressures @ -60°F min / 406°F max |
| Stainless Steel Wetted Trim (19L, 19S) |
| Made in the USA |
| Set pressures and temperatures vary by model. Refer to catalog for sizing and selection information |
| ASME Section I Power Boilers |
| ASME Section VIII Div 1 Pressure Vessels |
| Canadian Registration Number 0G8547.5C Pressure Equipment Directive 2014/68/EU (PED) |
| ASME Sections I & VIII capacity certified safety valve for overpressure protection of steam power boilers, pressure piping systems, pressure vessels, piping and similar equipment. Suitable for steam, air and non-hazardous gases. |
