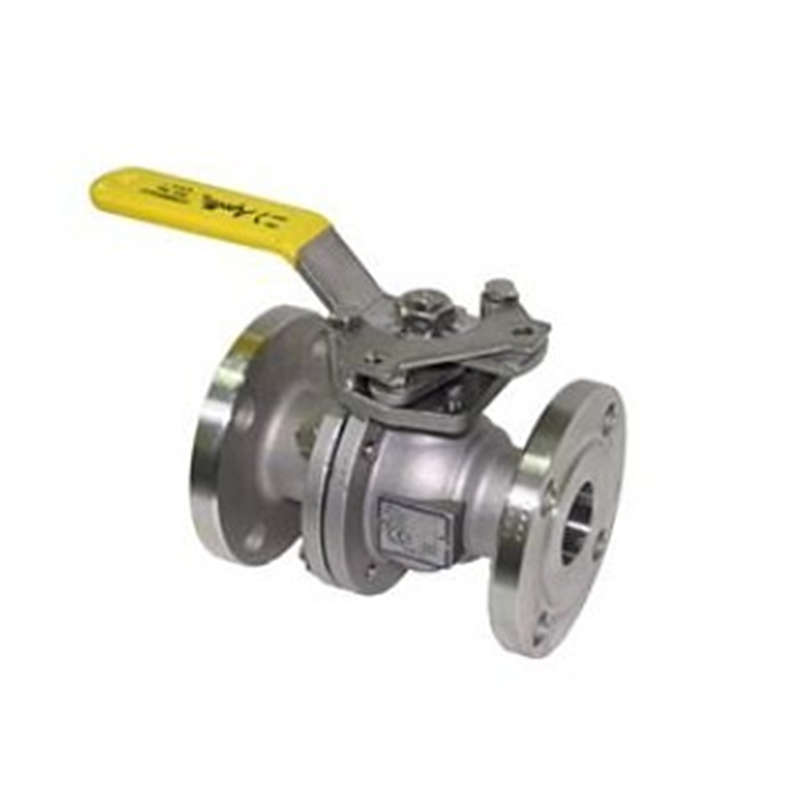

2 in Flanged Full Port Ball Valve w/ Lock Plate, 150 lb, Stainless Steel
$$APOLLO 87A-208-01 2" 150# FLANGED STAINLESS STEEL FULL PORT BALL VALVE W/ LOCK PLATE (REPLACES 87-208-01)
2 in Flanged Full Port Ball Valve w/ Lock Plate, 150 lb, Stainless Steel
- Media: Steam
- Pressure Rating: 150 psi
- Series: 87A-200-01
- Nominal Size: 2 in
- End Style: Flanged
- Pressure Class: 150
- Body Material: Stainless Steel
- Port Type: Standard
- Features
| Two Position Locking Device |
| Chevron Style Adjustable Stem Seals |
| ISO 5211 Mounting Pad Bolt Pattern |
| Slot Vented Ball for Thermal Expansion |
| Rated up to 150psi Saturated Steam: ASME Class 150, 300, & 600 Valves |
| Anti-static Grounded Ball and Stem |
| Blowout-Proof Stem Design |
| Cast Boss for Bleed / Drain Port |
| Vacuum Service to29 inches of Hg |
