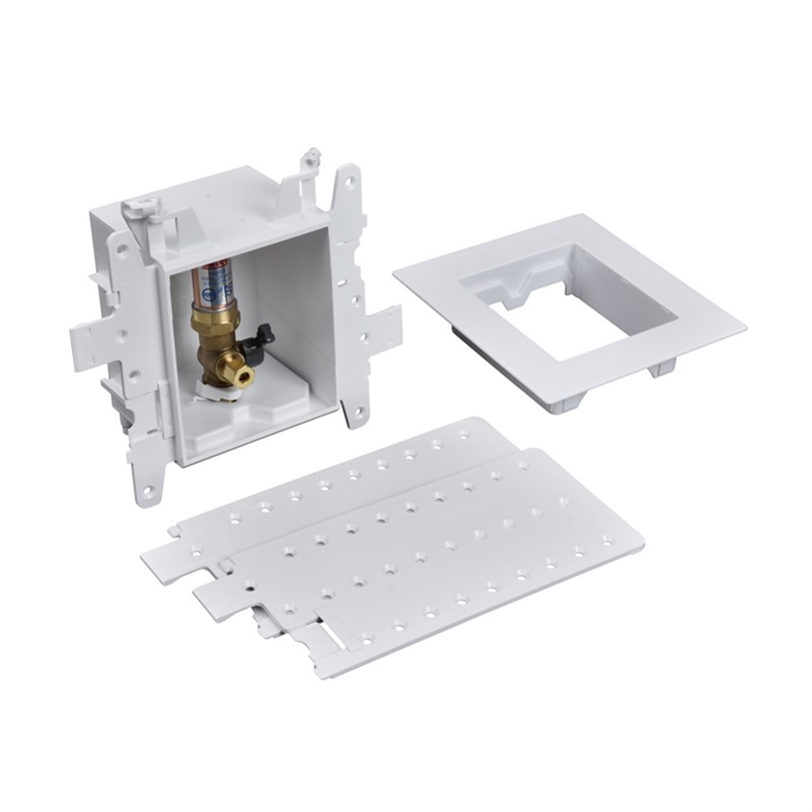

Oatey MODA 37705 1-Valve Supply Box System With Hammer, For Use With Ice Maker, Brass PEX Connection, PVC
OATEY 37705 MODA- IMOB- 1/4 TURN- BR- F1807- HAM- CONT PK
Ice Maker Fittings
}
Oatey MODA 37705 1-Valve Supply Box System With Hammer, For Use With Ice Maker, Brass PEX Connection, PVC
3476498
MFG #: 37705
Product ID:3476498
Famous Supply
- Dimensions: 8 in W x 3.38 in D x 4.85 in H
- Suitable For Use With: Ice Maker
- Specifications: Brass PEX Connection
- Material: PVC
MODA™ Supply Box System is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent®Air Admittance Valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. MODA™ Supply Box System is the ultimate solution for speed and flexibility.
- Features
- Standards & Approvals
- Includes
- Application
| Using a single box platform provides significant convenience to installers |
| One universal faceplate is compatible with all box types |
| All boxes can snap to one another and common brackets can be used on any MODA™ supply box |
| Unique interlocking wing flanges accommodate on-stud, straddle-stud and three-box installations |
| Advanced snap-lock design allows assembly and disassembly with equal ease, for quicker installation and easy repositioning on the job |
| Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers |
| Dual box design provides ideal options for stacked washer/dryers and space-limited laundry rooms |
| Plumber-preferred, quarter turn test plug with gasket provided with every drain box |
| This means no knock outs falling into drains and no tools required |
| Oatey® exclusive feature |
| Stands up to the roughest job site abuse and no transition cement needed when solvent welding PVC pipe |
| Two piece valve design makes valve replacement easy to repair, without damaging drywall |
| Valves rated to 150 psi air and 250 psi water |
| Forged brass C46500 no lead ( chrome plated ) |
| Stainless steel valve retention clip |
| ASME A112.18.1 |
| CSA B125.1 |
| ASSE 1010 |
| ASTM F1807 |
| IAPMO Listed |
| PS-54 |
| NSF/ANSI 61/372 |
| UPC Listed |
| (2) 8 in L x 4 in W Side Brackets, Sticker Cover and 6 in W x 1.25 in D x 6.45 in H Faceplate |
| Ice Maker |
