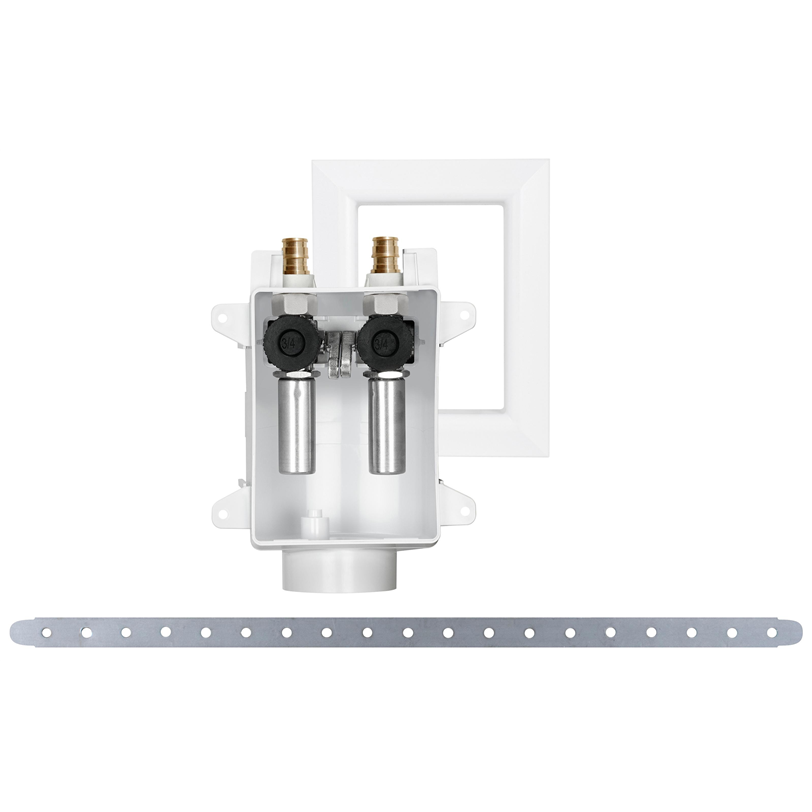

OxBox Fire Rated Top Feed Washing Machine Outlet Box With Hammer Arrester & Frame, 1/2 in F1960 PEX Grip x 3/4 in Male Hose Outlet, No Lead
SIOUX 696-G2413WF LEAD FREE OX BOX WASHING MACHINE OUTLET BOX F1960 PEX VALVES
Supply Boxes
}
OxBox Fire Rated Top Feed Washing Machine Outlet Box With Hammer Arrester & Frame, 1/2 in F1960 PEX Grip x 3/4 in Male Hose Outlet, No Lead
3449516
MFG #: 696-G2413WF
Product ID:3449516
Famous Supply
- Color: White
- Dimensions: 5-7/8 x 7-1/4 in
- Pressure Rating: 200 psig
- Series: 696R
- Temperature Rating: 200 deg f
- Type: Washing Machine
- Inlet Size: 1/2 in
- Outlet Size: 3/4 in
- Inlet Type: F1960 Grip
- Outlet Type: Male Hose Thread
- Material: ABS
Sioux Chief 696 OxBox ONE™ compact, single outlet box shall be used in residential or commercial plumbing supply/drainage systems. Unit shall accommodate supply lines from above. Unit is designed to be secured directly to vertical stud or between studs using galvanized bracket (provided). Supply box options shall include 1/4-turn ball valves with or without water hammer arresters. Valve options shall accommodate all common industry inlet connections with 2 in DWV drain connection that shall include 5/8 in integral test nipple with knock out. Outlet connections shall be 3/4 in. Every unit shall include debris cover for protection during rough-in.
- Features
- Standards & Approvals
- Includes
| Boxes mount securely to stub or over studs |
| Separate supply and drainage system into two stub bays |
| Separate boxes offer flexible layout |
| Durable ABS stands up to job site abuse |
| Drain knockout is easy to remove with plier |
| Debris cover included to protect boxes from drywall mud and paint |
| High quality quarter-turn ball valve |
| MiniRester™ water hammer arrester |
| ASME A112.18.1 |
| NSF-372 |
| IAPMO/UPC Listed |
| Standard pack (supply box, frame, bracket, debris cover) |
