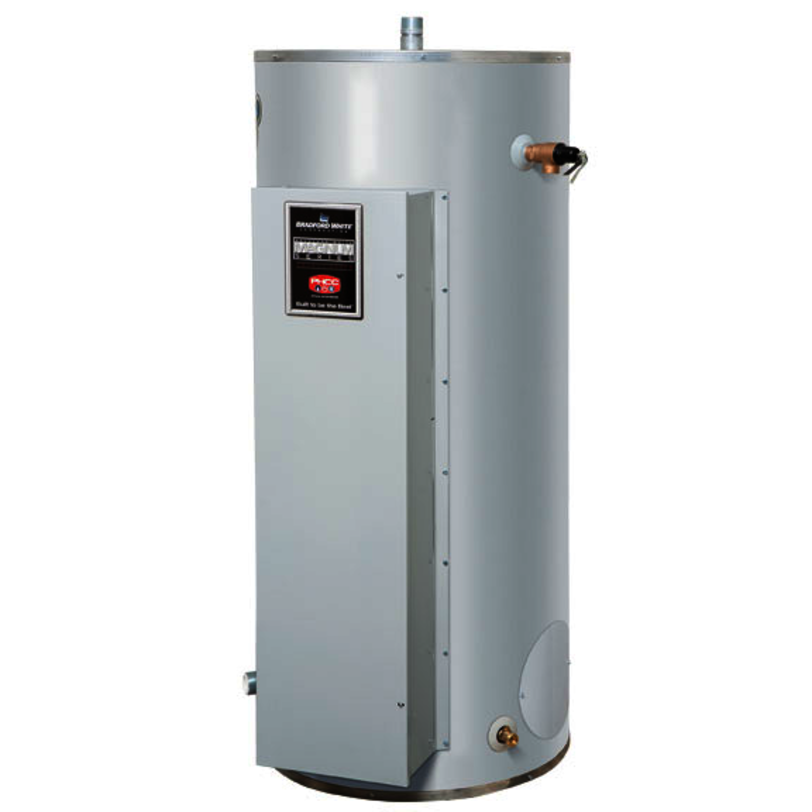

80 Gallon Upright Heavy Duty Electric Water Heater, 45 kW, 480V, 3 Phase, T&P Installed
$BRADFORD-WHITE CEHD-80-45-3CF COMMERCIAL ELECTRIC WATER HEATER ELECTRIFLEX HD IMMERSION THERMOSTAT 80 GALLON 480 VOLT 9 5000 WATT ELEMENTS 45 KW 3 PHASE
Commercial Electric Tank Water Heaters
}
80 Gallon Upright Heavy Duty Electric Water Heater, 45 kW, 480V, 3 Phase, T&P Installed
3521836
MFG #: CEHD-80-45-3CF
Product ID:3521836
Famous Supply
- ASME Yes/No: Yes
- Dimensions: 26 Dia x 65-1/2 H in
- Heating Element: (9) Screw-In Incoloy
- Mounting Type: Floor
- Pressure Rating: 150 psi
- Recovery Rate: 465 gph
- Series: CEHD-45-3CF
- Temperature Rating: 180 deg f
- Type: Heavy Duty
- Water Connection: 1-1/2 in
- Tank Capacity: 80 gal
- Power Rating: 45 kw
- Voltage Rating: 480
- Phase: 3
- Tall or Short: Upright
The Heavy Duty models come in 80 gal capacity tanks with an input as high as 54 kW and the option for ASME construction. Perfect for commercial applications with high hot water demand. They are also field convertible for various wiring configurations.
- Features
- Warranty
- Includes
- Application
| Immersion Thermostats —Designed to provide outlet water at a thermostatically controlled temperature greater than 180°F (82°C). |
| Conversion Kits—Design certified by UL® for field conversion. Conversion kits are available to convert any one model to a variety of voltages and kW inputs (Kit part numbers on reverse side). All models are shipped from the factory standard Three Phase, and can be field converted to Single Phase without a conversion kit. |
| Insulation System—3" (76mm) Non-CFC foam covers the sides and top of the tank, reducing heat loss. This results in less energy consumption, improved efficiencies, and jacket rigidity. |
| Vitraglas® Lining with Microban®—An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water; and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining. |
| Hydrojet® Sediment Reduction System—Sediment build-up reducing device that also increases first hour delivery of hot water while minimizing temperature build-up in tank. |
| Water Connections—11⁄2" (38mm) NPT factory-installed true dielectric fittings extend water heater life and simplify water line connections. |
| Elements—Screw in style low watt density incoloy sheathed elementsstandard. These elements are durable and resistant to lime buildup. |
| Two Protective Anode Rods—Provide added protection against corrosion for long-term, trouble-free service. |
| Hand Hole Cleanout—Allows inspection of tank interior and facilitates the removal of sediment deposits. |
| ASME Construction Available. |
| NSF Kits Available. |
| Low Restrictive Brass Drain Valve—Durable tamper proof design. |
| T&P Relief Valve—Installed. |
| Completely Pre-wired—With pressure lug terminal block eliminating need for splicing or taping of wires. |
| Voltages Available—208v, 240v, 277v, 380v, 415v, 480v and 600v. |
| Internal Fusing—Standard on all models. |
| 3 Years Limited on Tank/1 Year Limited on Component Parts |
| Temperature and Pressure Relief Valve |
| Commercial Application |
