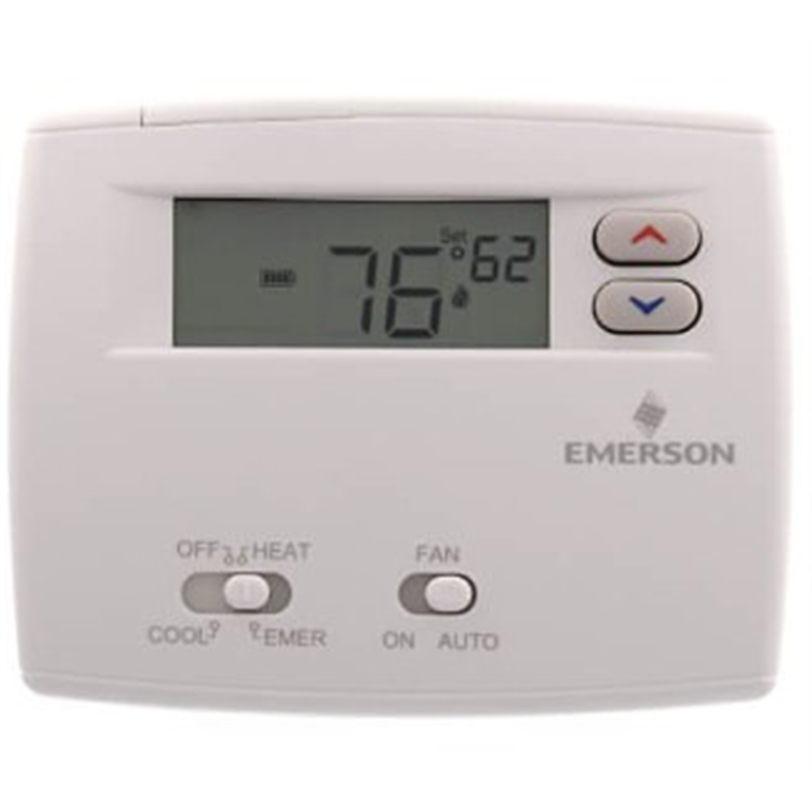

White-Rodgers Blue Series Digital Non-Programmable Thermostat 1F89-0211
WHITE-RODGERS 1F89-0211 BLUE 2" DISPLAY, HEAT PUMP NON-PROGRAMMABLE OR 5/1/1 PROGRAMMABLE DIGITAL THERMOSTAT
Low Voltage Thermostats
Famous Supply
- Color: White
- Display Type: Digital
- Mounting Type: Horizontal
- Power Source: Battery/Hardwired
- Stages Cool: 1 Heat Pump
- Stages Heat: 2 Heat Pump
- Type: Wired
- Voltage Rating: 24
- Thermostat Type: Non-Programmable
White-Rodgers™ Blue™ Thermostat, Digital, Non-Programmable Thermostat, 45 to 90 deg F Control, R, C, W2, Y, O/B, G, L Terminal Designations, Cool/Off/Heat System Switching, Auto/On Fan Switching, 2 Stage, 1 Stages Heat, 1 Stages Cool, 90% Non-Condensing Humidity, 2 in Display, 20 to 30 VAC, Dual Power Battery/Hardwired Power Source, Horizontal Mounting, White, 4-3/4 in W x 1-1/2 in D x 3-3/4 in H Dimensions, Import Domestic/Import
- Features
- Warranty
- Includes
| Heat pumps or single stage models |
| Easy set models feature simple homes sleep away preset button |
| Cool Savings™ saves energy during peak A/C demand periods |
| Lighted display for easier low-light viewing |
| Dual power hardwired and/or battery powered |
| Fit horizontal junction box |
| Air filter change indicators options |
| 1 mV to 30 VAC, NEC class ii, 50/60 Hz or DC battery power |
| 20 to 30 VAC, NEC class ii 50 or 60 Hz hardwired power |
| 32 to 105 deg F ambient operating temperature |
| Permanent memory back-up |
| Millivolt compatible |
| For gas oils, electric and heat pumps application |
| 5 Years |
| Wallplate with F61-2634 Junction Box Adapter |
