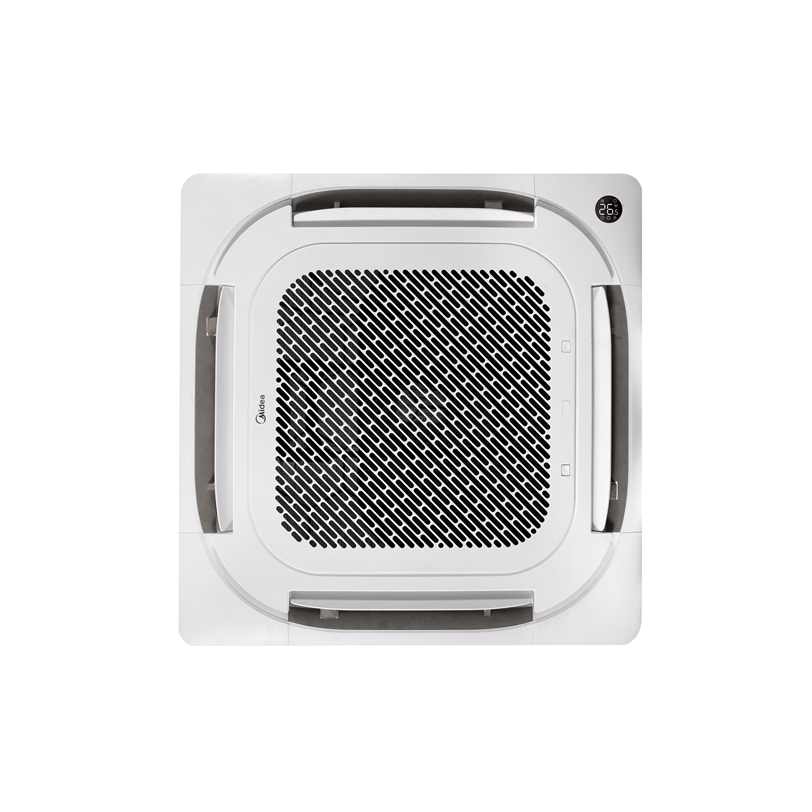

36,000 BTU LC Indoor 4-Way Cassette

MIDEA MCDHS-H36B-2A 22022511004516 36K CASSETTE IDU

Mini Split Heat Pump Indoor Units
Brand: Midea
}

36,000 BTU LC Indoor 4-Way Cassette

3634260 MFG #: MCDHS-H36B-2A Product ID:3634260
Famous Supply
  • Dimensions: 32-5/8 x 32-5/8 x 9-5/8 in
  • Discharge Line Size: 3/8 (9.52) in (mm)
  • Flow Rate: 1042 / 948 / 854 / 753 / 659 cfm
  • Fuse Size: 15 a
  • Maximum Piping Length: 246 ft
  • Mounting Type: Ceiling Mount
  • Nominal Capacity: 36000 btu/h
  • Suction Line Size: 3/4 (19) in (mm)
  • Temperature Rating: 60~90 ℉
  • Type: 4-Way Cassette
  • Cooling Capacity: 36000 btu/h
  • Power Source: 208 / 230 V, 60 Hz,1 Ph
  • Collection: Single-Zone, Multi-Zone
Midea MCDHS-H36B-2A 36,000 BTU LC Indoor 4-Way Cassette
  • Features
  • Standards & Approvals
Refrigerant leakage detection sensor(Optional)
Humidity sensor
Built-in pump
1~100% fan speed setting
WiFi capability: through WiFi dongle or wired controller with built-in WiFi
OTA(by using WiFi dongle)
2-pin connector(HA/HB) for programmable wired controller
Multiple control options available: Two way communication wired controller:120N(X6), Two way communication wired controller with built-in WiFi:120N(X6W), Infrared wired controller: 120L, Wireless remote controller, Third-Party 24V Thermostat*
ETL
AHRI
NEEP
EnergyStar
